Summary

• Oscillatory motion
• Mass on spring
• Energy and oscillations

• Simple harmonic oscillators
• review mass on a spring
• simple pendulum applet
• pendulum energy applet
• compare with mass on a spring applet
• the physical pendulum
Example #1
Example #2
Practice question


• SHO and circular motion applet
• energy review
Example #3
Example #4




• Interactive Example about oscillations
• Interactive Example block and spring

kw4
How long should a pendulum be in order to have a period of exactly one second?
A. 1.56 m
B. 0.248 m
C. 4.03 m
D. 387 m
Answer




















If a 1.00-m-long pendulum on planet Gnuton has a period of 3.26 s, what is the acceleration due to gravity on Gnuton?
A. 73.0 m/s²
B. 10.6 m/s²
C. 3.71 m/s²
D. 0.00238 m/s²
Answer



















PoP5 12.30

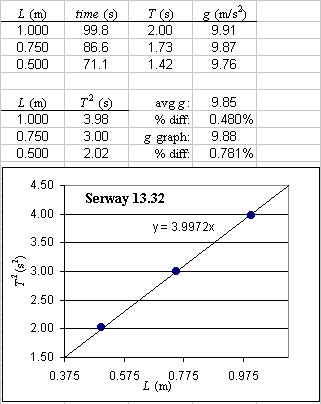

Practice question The period of a simple pendulum is measured by timing 50 oscillations. For lengths of 1.000 m, 0.750 m, and 0.500 m the total times are 99.8 s, 86.6 s, and 71.1 s. Determine the period of motion and the mean value of g for each measurement and compare it with the accepted value. Plot T ² versus L and obtain a value of g from the slope of the graph.
Answer



















gc6 11.10
At what displacement from equilibrium is the speed of a SHO half the maximum value?

Answer



















gc6 11.17
At what displacement from equilibrium is the energy of a SHO half KE and half PE?

Answer







































answer

B. 0.248 m




















answer

C. 3.71 m/s²




















answer





















answer























answer
